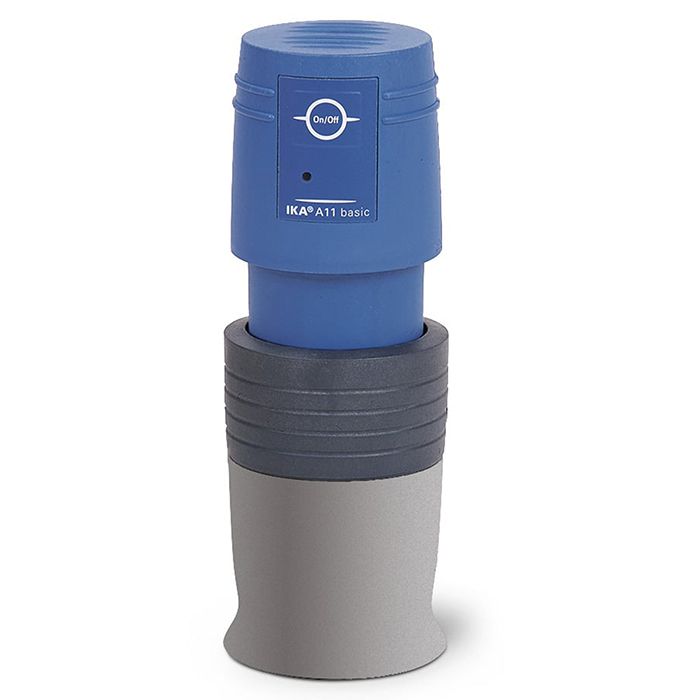

Mill IKA A11

Stock:

1 - 9

Add to Favourites

Downloads

Description

Batch mill for 2 different grinding procedures:

Impact grinding of hard, brittle or non-elastic grinding materials with high-grade stainless steel beater. This beater can be used for a Mohs hardness up to 6 (incl. with delivery).

Cutting grinding for pulverizing soft, fibrous materials with a cutting blade (not incl. with delivery).

Features and Benefits:

Moist and gluey materials can be pulverized by adding water
Grinding chamber made of Tefcel (ETFE, glass fiber-reinforced) with stainless steel inlet (1.4571), useful volume 80 ml (incl. with delivery). For embrittlement of grinding materials with liquid nitrogen in the grinding chamber
Optionally, a 250 ml grinding chamber is available

Technical Data:

Process Type	Batch
Operating Principle	Cutting / Impact
Motor Rating Input	160W
Motor Rating Output	100W
Speed Max	28,000rpm
Circumferential Speed Max	53m/s
Useable Volume Max	80mL
Feed Hardness Max	6 Mohs
Feed Grain Size Max	10mm
Material beater/cutter	Stainless Steel 1.4034
Material Milling Chamber	Stainless Steel 1.4571
Milling Chamber, can be cooled with water	Yes
Mill Feed can be cooled in milling chamber with dry ice	Yes
Dimensions (W x H x D)	85 x 240 x 85mm
Weight	1.5Kg
