Stock Code:
0002563000I

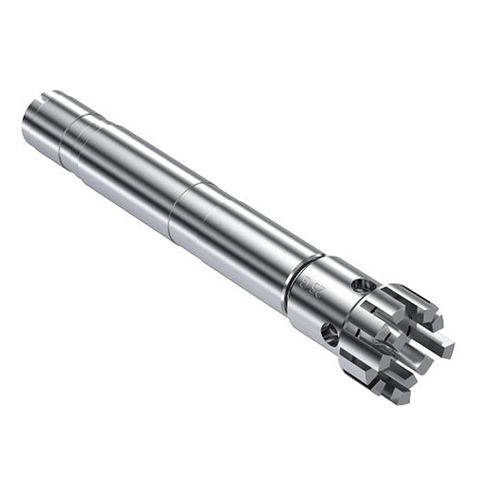

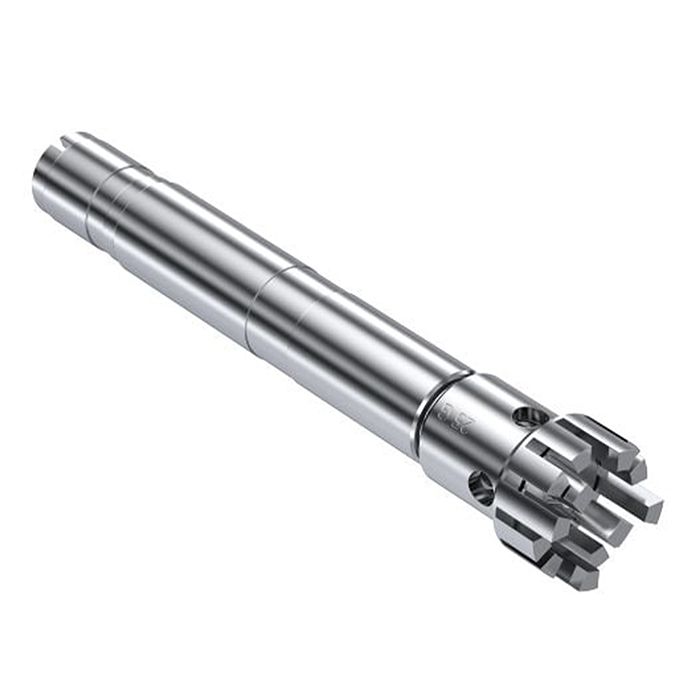

Dispersion Tool T25 S25KV/25G/IL
Stock:
Out of Stock
Description
Specially designed dispersing tool for use with the UTL25 digital in-line diapering unit only. The completely sealed internal system prevents samples from entering the main drive and allows for safe operation in a horizontal in-line position.
Technical Data:
| Stator diameter | 25mm |
| Rotor diameter | 17mm |
| Gap between rotor and stator | 0.5mm |
| Allowable speed max. | 25,000rpm |
| Circumferential speed max | 22.2m/s |
| Immersion depth | 40 - 85mm |
| Shaft length | 1100mm |
| Material in contact with medium | FFPM / SIC, AISI 316L, AISI 302 |
| pH range | 2 - 13 |
| Suitable for solvents | Yes |
| Working temperature range | 220c |
| Sterilisation methods | All methods |
| Vacuum | 1mbar |
| Pressure | 6bar |
| Ultimate fineness, suspensions | 15 - 50um |
| Ultimate fineness, emulsions | 1 - 10um |
Details
-
Pack Size:EACH
