Stock Code:
0030000731I
ThermoMix IKA Matrix Orbital + - Mixing, Heating, Cooling
Stock:
1 - 9
Downloads
Description

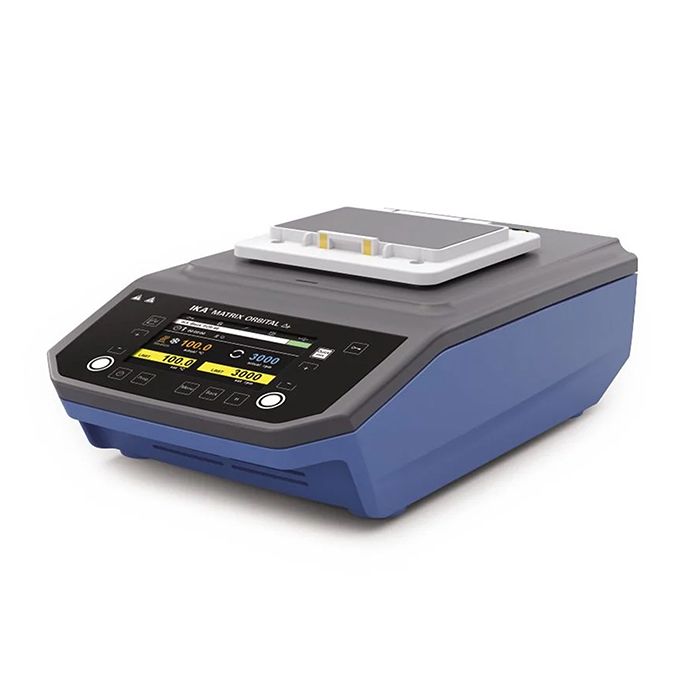

The all-rounder MATRIX Orbital Delta plus mixes, heats and cools reliably with variable inserts. Whether blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays - reaction vials and plates with even the smallest volumes are reliably mixed and tempered in all laboratory applications. No cross-contamination and an optimal mixing result.
In addition, MATRIX Orbital Delta plus comes with numerous user-friendly features:
- Large and clear display with a convenient menu structure allows for an intuitive operation
- Firm quick-release fastener for quick and easy changing of the inserts/attachments as well as an automatic attachment detection
- Quick and effective mixing of liquids with up to 3,000rpm and 3mm shaker diameter
- Reduced waiting time through fast heating and cooling rates of up to 6c/min (heating) or 2.5c /min set-point temperature above the ambient temperature (cooling, 0.5c/min at set-point temperature between ambient temperature and 15c below ambient temperature)
- Automatic performance of mixing, heating and cooling tasks through programmable ramps
- Wide range of inserts for reaction vessels and plates
- Intelligent speed adaption to insert, attachment and filling volume
- Aluminum die cast housing ensures secure positioning, excellent stability and everyday robustness
The device is ideally suited for numerous applications in laboratories, such as:
- Tempering / mixing of samples
- Synthesis of cDNA
- Enzyme-catalysed linking of RNA and DNA (ligation)
- Lysis reactions
- Structural change of DNA, RNA and proteins (denaturation)
Technical Data:
| Type of movement | orbital |
| Shaking stroke | 3mm |
| Maximum load | 0.3kg |
| Motor rating output | 88W |
| Permissible ON-time | 100% |
| Speed min (adjustable) | 300rpm |
| Speed range | 0 - 3,000rpm |
| Speed display | TFT |
| Speed deviation | +/- 30rpm |
| Speed adjustment | 10rpm steps |
| Timer | Yes |
| Timer display | TFT |
| Time setting min. | 1s |
| Time setting max. | 6,000min |
| Operating mode | timer, continuous and program operation |
| Working with micrometer plates | yes |
| Working room temperature | room temp. -15c |
| Temperature setting range min. | 1c |
| Heating temperature max. | 100c |
| Heat output | 100W |
| Heat control | TFT |
| Set temperature resolution | +/- 1c |
| Temperature control accuracy | +/-0.5(@20c...45c) |
| Temperature stability | 0.5c |
| Temperature homogenity | +/-0.5(@20c...45c) |
| Heating rate | 6c/min |
| Temperature display | Yes |
| Cooling rate | 2.5c/min |
| Cooling power | 72W |
| Number of exchangeable attachments | 10 |
| Dimensions (W x H x D) | 216 x 127 x 351mm |
| Weight | 10kg |
| Protection class | IP21 |
| RS 232 interface | Yes |
| USB interface | USB-B |
Supplied with:
- ThermoMix
- USB A-B Calble
Details
-
Pack Size:EACH
