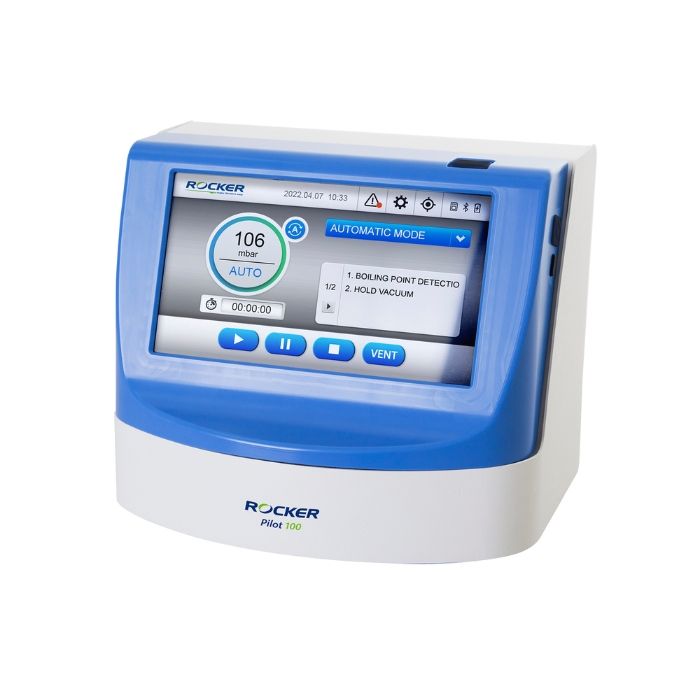

Vacuum Controller Rocker Pilot 100

UOM:

EACH

Stock:

Special Order

Downloads

Start and leave. Pilot 100 detects vapor pressure and keeps vacuum at optimal levels.

Features and Benefits:

Pilot 100 detects the vapor pressure and keeps vacuum at optimal levels

Start and leave

The processes of the Pilot 100 can be defined via its user-friendly GUI

Intuitive drop-down lists and modules up to 10 steps provides the user with full flexibility and control

Can be installed with most vacuum sources including diaphragm pumps, piston pumps, rotary vane pumps etc.

The touch panel of the Pilot 100 reads touch through thick lab gloves, making control easy and convenient

The control panel of the Pilot 100 is detachable from its magnetic base and can be remotely controlled

Certifications:

Applications:

Technical Data:

Model	Pilot 100
Resolution	1 digit
Pressure display	mbar, hPa, torr
Display	7" touch screen
Measuring range	1100~0 mbar abs.
Measurement accuracy	±2 mbar (after adjustment, constant temp)
Setting range	1013~0 mbar
Housing material	Plastic
Venting valve	Yes
Auto-cleaning	Yes
Power	15W
Hose barb	ID 8 ~ ID 10
Safety	Over-pressure protection, Error message
Dimension (LxWxH)	21 x 20 x 18cm
Net weight	2.2kg
