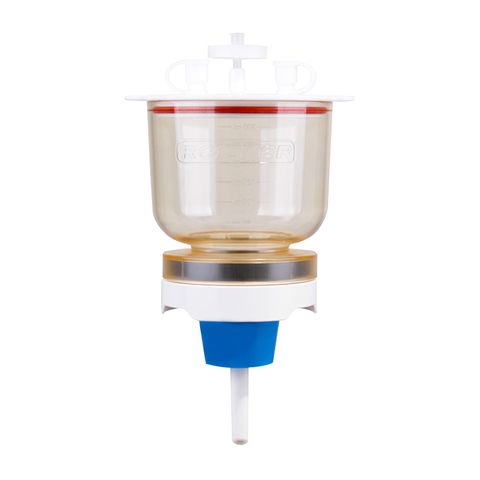

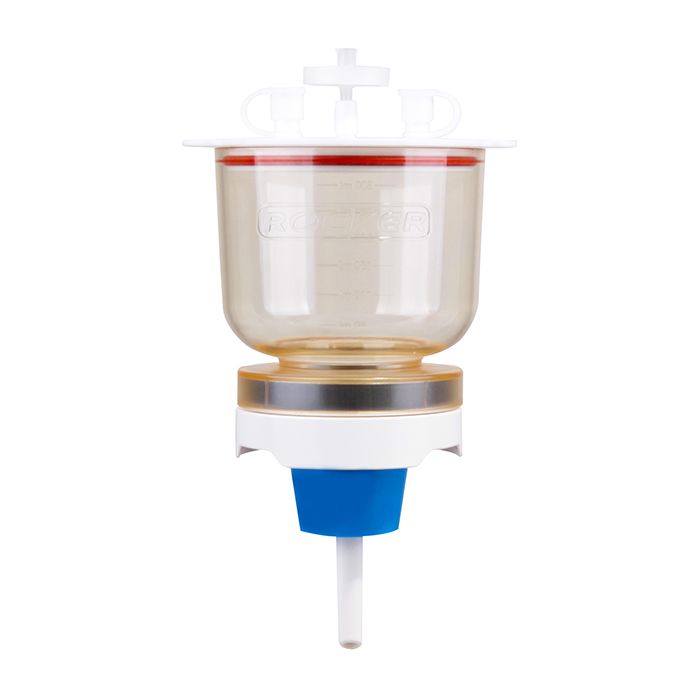

Filter Holder PES Magnetic No. 8 Stopper 47mm without Lid

Stock:

1 - 9

Description

Rocker MF series magnetic filter holders are designed with double-layer magnets to ensure a tight seal between the funnel and support base. The user-friendly design can allow one-handed operation and prevent possible twisting and tearing of the membrane.

Innovative design of a hose fitting detachable to the support base can allow a direct connection to vacuum source and a flexible use with various kinds of vacuum flask and bottle. Constructed of Polyether sulfone (PES) material, MF series filter holders can be resistant to a wide range of solvents, sturdy and autoclavable.

Lid sold separately (Code 200300-36)

Features:

One to more

Compatible with various kinds of bottle, vacuum flask with or without side arm to collect filtrate directly.

Easy to use

Strong magnetic seal allows one-handed operation, prevents possible twisting and tearing of the membrane. Membrane guide on the base helps position membrane easily.

Safety

PES (Polyether sulfone) construction, resistant to a wide range of chemicals and high temperature, sturdy and unbreakable.

Reusable

Withstands numerous autoclave cycles, save money and energy consumption

Invention Patent

MF magnetic filter holder was awarded the United States (US 9.452.373B1), Taiwan (I551337) and China (ZL 2015 2 0050109.6) invention patent.

Applications:

Suspended Solid test filtration for municipal, surface, ground and drinking water
Microbiology test filtration in food, pharmaceutical, beverage industries
Medium purification in life science laboratory
Vacuum filtration for aqueous sample

Technical Data:

Specification	Material
Funnel Capacity: 300mL	Funnel: PES
Filter Diameter: 47mm	Support Base: PES
Effective Filtration Area: 13.1cm²	Membrane Support: PES
Hose barb: ID4 ~ ID8	Hose Barb: PES
Graduation increment: 50 mL
