Stock Code:
0010010765I

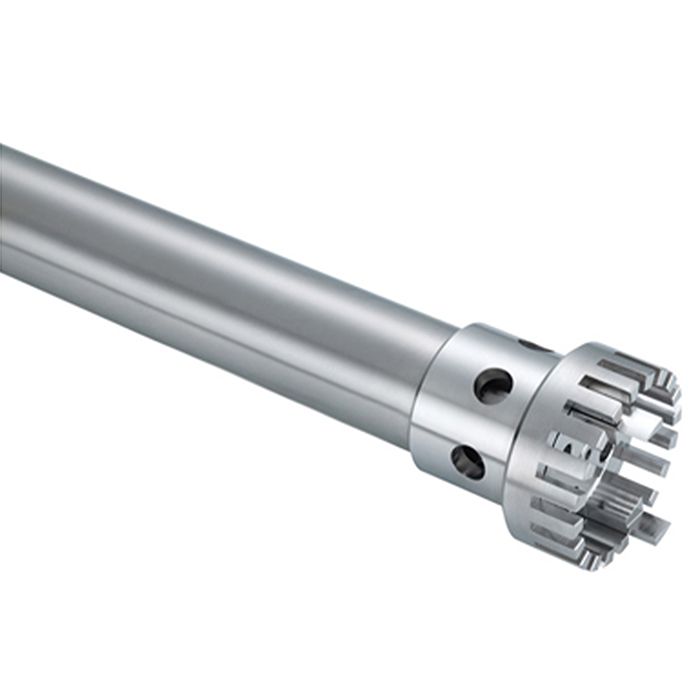

Dispersion Tool T65 S65KG-HH-G65G
Stock:
Out of Stock
Description
Suitable for dispersing instrument T65.
Technical Data:
| Volume Range (H2O) | 2 - 50L |
| Stator diameter | 65mm |
| Rotor diameter | 53mm |
| Gap between rotor and stator | 0.5mm |
| Allowable speed max. | 9,500rpm |
| Circumferential speed max | 26.4m/s |
| Immersion depth | 90 - 450mm |
| Shaft length | 520mm |
| Material in contact with medium | FFPM / WC / AISI 316L |
| pH range | 2 - 13 |
| Suitable for solvents | Yes |
| Working temperature range | 170c |
| Sterilisation methods | All methods |
| Vacuum | 1mbar |
| Pressure max. | 6bar |
| Ultimate fineness, suspensions | 25 - 75um |
| Ultimate fineness, emulsions | 5 - 25um |
| Dimensions | 65 x 560 x 65mm |
| Weight | 4.03kg |
Details
-
Pack Size:EACH
