Mill IKA MultiDrive Accessory MI250T-S Vessel with Beater and Temperature Sensor
Description

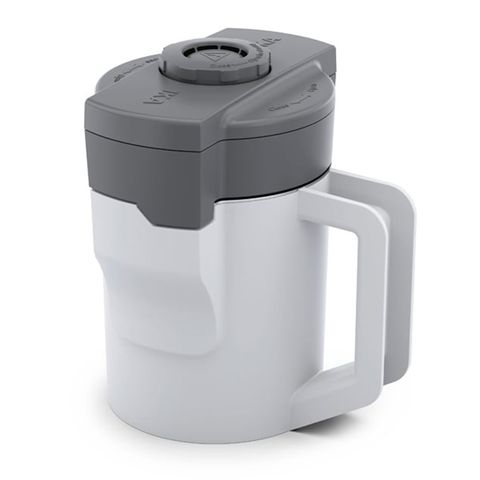

MI 250 T - S is a specially sealed vessel with beater and temperature sensor. In combination with MultiDrive control, it is suitable for dry grinding of a variety of applications, such as wood, pet food, frozen products or plastics.
The special vessel seal allows pressure to be released via the lid during the comminution process of for example very fine powder. The product is held in the vessel by a special foam.
The integrated temperature sensor allows continuous monitoring and individual setting of the temperature limit. This is especially important for temperature-sensitive materials.The milling chamber has to be cleaned manually. The beater can be easily dismantled for intensive cleaning.
A standard stainless steel beater is included with the scope of delivery. Other optional tools, such as a star knife mado of stainless steel or a beater made of hard metal are available separately.
Technical Data:
| Process Type | Batch |
| Operating principle | Impact |
| Speed range | 3,000 - 20,000rpm |
| Circumferential speed max | 75m/s |
| Useable volume max | 250mL |
| Feed hardness max | 5 Mohs |
| Feed grain size max | 7mm |
| Material beater/cutter | Stainless steel 1.4034 |
| Material milling chamber | Stainless steel 1.4301 |
| Material (other) | Stainless steel, Silicone, SIC |
| Power On time | 30 min |
| Power Off time | 10 min |
| Milling chamber, can be cooled with water | Yes |
| Mill feed can be cooled in milling chamber with dry ice | Yes |
| FDA conform | Yes |
| Multi use | Yes |
| Data transfer drive/vessel | Wireless with RFID |
| Monitoring maintain time | Yes |
| Temperature measuring | Yes |
| Temperature measurement resolution | 0.1K |
| Accuracy of temperature measurement | +/-5K |
| Temperature limit min | -50c |
| Temperature limit max | 120c |
| Beater/knife diameter | 71mm |
| Suitable for abrasive substances | Yes |
| Dimensions (WxHxD) | 160 x 180 x 160mm |
| Weight | 1.5kg |
Details
-
Pack Size:EACH
