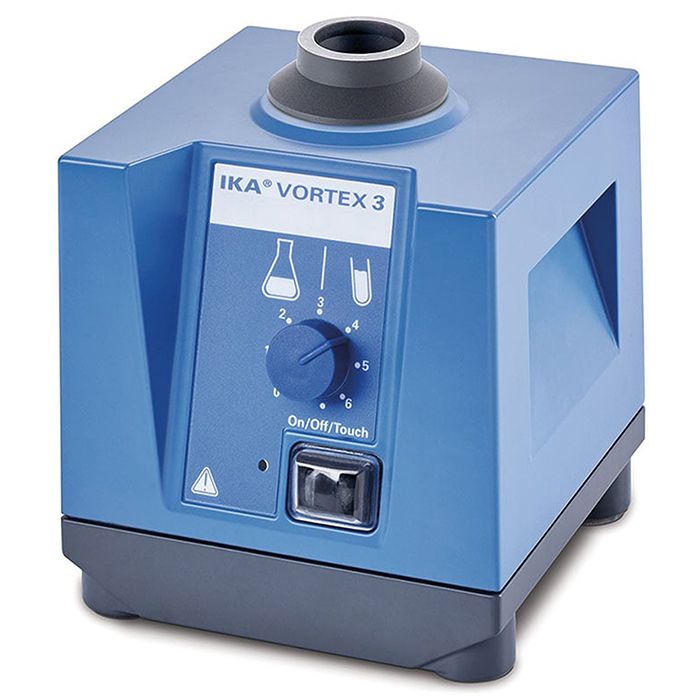

Shaker IKA Orbital Vortex 3

Stock:

Out of Stock

Downloads

Vortex shaker suitable for short-time operation (touch function), activated by pressing shaker attachment or continuous operation.

Features and Benefits:

Wide speed range, infinitely adjustable
Different applications thanks to 3 interchangeable attachments and 7 inserts (e.g. tubes, microtiter plates, etc)
Attachments securely click onto appliance in any position
Special strap (VG3.36) ensures easy handling of round/Erlenmeyer flasks)
Sturdy metal zinc die casing
Compact design
Short-time operation activated by pressing attachment (touch function)
Stable at high speeds thanks to special feet (silicon base with ultra high vibration damping)
Eccentric with ball bearings
Suitable for continuous operation with low self heating thanks to self ventilation of motor

Technical Data:

Type of movement	Orbital
Shaking stroke	4mm
Permissible shaking weight (incl. attachment)	0.4kg
Motor rating input	58W
Motor rating output	10W
Permissible ON-time	100%
Speed min (adjustable)	500rpm
Speed range	0 - 2,500rpm
Speed display	No
Operating mode	Continuous operation
Touch function	Yes
Working with microtiter plates	Yes
Number of microtiter plates	1
Dimensions (W x H x D)	127 x 136 x 149mm
Weight	4.5kg
Protection class	IP21
